Opis

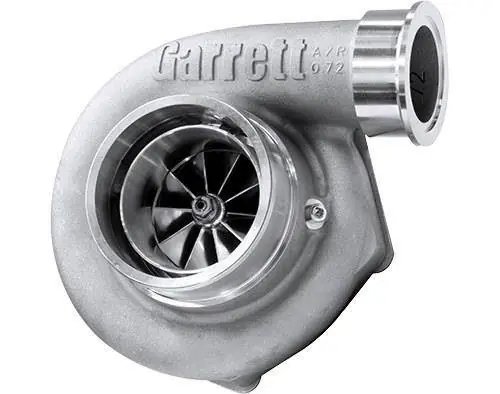

Wyczynowa turbosprężarka firmy Garrett, GTX3584RS.
Turbosprężarki Garrett charakteryzują się najwyższą wydajnością i niezawodnością, popartą wieloletnim doświadczeniem.
Zastosowanie :
- Moc: 550 – 1000HP
- Pojemność: 2.0L – 5.5L
Features:
GEN 2 AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
„RS” DESIGNED, HIGH HORSEPOWER TURBINE WHEEL
COMPACT DESIGN FOR TIGHT INSTALLATIONS
NEW FULLY-MACHINED SPEED SENSOR PORT.
SOLD AS ASSEMBLY KITS (SUPER CORE + TURBINE KIT)
COMP OUTLET AVAILABLE IN V-BAND & HOSE CONNECTION
Turbina występuje w poniżej wylistowanych konfiguracjach:
| Compressor | Turbine | |||||||
|---|---|---|---|---|---|---|---|---|
| Super Core Reference Data | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| GTX3584RS Hose Bead Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 | |
| GTX3584RS V-Band Comp Outlet | 67mm | 84mm | 64 | 0.72 | 68mm | 62mm | 84 | |
| Notes: | Assembly Kit PN | Super Core PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided |
| Hose Bead Comp Outlet | 856804-5001S | 846098-5001S | 740902-0067 | 0.83 | V-Band | V-Band | Free Float | N |
| 856804-5002S | 846098-5001S | 740902-0066 | 1.01 | V-Band | V-Band | Free Float | N | |
| 856804-5003S | 846098-5001S | 740902-0052 | 1.21 | V-Band | V-Band | Free Float | N | |
| V-Band Comp Outlet | 856804-5004S | 846098-5002S | 740902-0067 | 0.83 | V-Band | V-Band | Free Float | N |
| 856804-5005S | 846098-5002S | 740902-0066 | 1.01 | V-Band | V-Band | Free Float | N | |
| 856804-5006S | 846098-5002S | 740902-0052 | 1.21 | V-Band | V-Band | Free Float | N |
Wymiary:
Wykresy:
